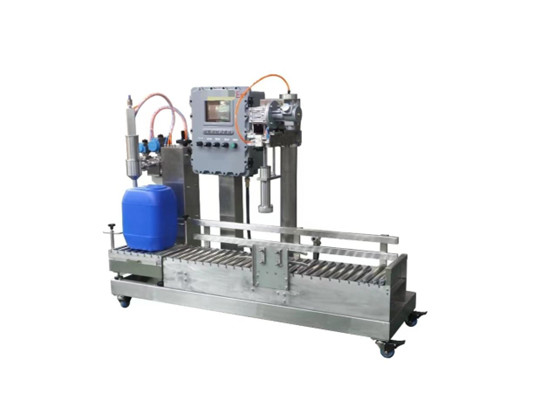

FF 30 Explosion Proof Filling Machine Cap Screwing Type

FF 30 Explosion Proof Filling Machine Cap Screwing Type

  • High Light

    FF 30 Explosion Proof Filling Machine


    Cap Screwing Electroplating Equipment


    FF 30 Electroplating Equipment

  • Power
    AC110V~380V 50/60HZ 0.1kw
  • Speed
    90-120 Barrels/Hr
  • Air
    0.5~0.7 Mpa
  • Accuracy
    ≤0.05% F.S.
  • Fill Range
  • Fill Head Material
    SUS304/316/PTFE (Optional)
  • Division
  • Ex Grade
  • Place of Origin
  • Brand Name
  • Model Number
    FF 30 Explosion-Proof Filling Machine
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Standard export packaging
  • Delivery Time
    15-25 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

FF 30 Explosion Proof Filling Machine Cap Screwing Type

FF 30 Explosion-Proof Filling Machine – Cap Screwing Type


Applicable Materials:

Filling of materials with high cleanliness or corrosiveness in pharmaceutical, food and chemical industries.

Operation Process

Power on —Put barrel onto weight platform manually, fast positioning and mouth aligning — System detects barrel position automatically — Auto tare deduction — Filling nozzle and ball valve set open and start filling automatically ┅ Large/ small two shifts filling and reach the target weight and the nozzle closes automatically—Manual move barrel to cap clamping area — Press glancing button ┅ Pneumatic glancing ┅ Manually stacking.


Product Details:

Main features:

Machine body material: whole sus304 body, food-grade sus316L filling nozzle, and flow pipeline.

Adjustable device: filling nozzle height and position limit devices, pneumatic capping device, torsion and height, safe and reliable, improve the efficiency extremely and save labors.


Optional Configuration:

Dual nozzles, dual meters/ Filling nitrogen/ Return valve/ Filter/ Gas-collecting cover/ Other customization.


Main Parameter:

Power: AC110V~380V 50/60HZ 0.1kw
Speed:90-120 barrels/Hr
Air:0.5~0.7 Mpa
Accuracy:≤0.05% F.S.
Fill Range:10~30kg
Fill Head Material: SUS304/316/PTFE (Optional)
Ex Grade: ExdllBT6
